Are ECM motors quieter?

What does ECM mean in HVAC?

Electronically commutated motor (ECM) technology has been in use for over 20 years in the HVACR industry. Predominantly used in variable-speed indoor blower motors, ECMs were introduced in 1987 by GE (rebranded Genteq™ in 2009).

What is a ECM furnace motor?

Electronically commutated motors (ECM) represent an advance in blower motor efficiency that saves substantial energy and improves aspects of overall system performance. ... Variable speeds – Unlike an on/off PSC motor, a furnace ECM motor can operate at a range of outputs between zero and 100 percent.Oct 7, 2013

Is an ECM motor worth it?

The Benefits of an ECM Motor

One of the biggest improvements you'll see with an ECM is in overall air quality in your home. A PSC model will blow hard whether it is needed or not. This can result in the home getting to the optimal temperature too quickly to allow for the correct home humidity to be reached.

What is an ECM fan motor?

ECMs are a type of DC motor. They are also called DC fan motors, EEM fan motors, and variable speed fan motors. They function using a built-in inverter and a magnet rotor, and as a result, can achieve greater efficiency in air-flow systems than some kinds of AC motors.

How do I test my HVAC ECM motor?

If the motor does not run, make sure you have power to the IFC board and then check the voltage between pins 4 and 5 of the 5 pin plug on the motor. You should read 115 volts. If voltage is not present, the motor will not run. Check for a break in the wiring between the IFC board and the motor.

Why do ECM blower motors fail?

The motors by far fail the most but the control modules can also fail. If the motor fails it can simply be replaced. If the control module fails it needs the chip to be programed for the unit. ECM modules have a common failure which is a thermistor which goes bad and is a common for these to fail.Mar 7, 2020

Which is better ECM or PSC motor?

ECM technology is based on a direct current (DC) design that is more efficient and it runs cooler than AC PSC motors. They are, in fact, approximately 80% efficient compared to the 60% efficiency rating of PSC designs.

What is the advantage of an ECM motor?

High Efficiency: A big advantage of ECM motors is that they are significantly more efficient when compared to AC motors. ECM motors maintain a high level (65 to 75 percent) of efficiency at a variety of speeds.Jan 16, 2014

Is variable speed AC worth it?

For most homes in our area, a variable speed air conditioner is an excellent choice. If you're replacing an HVAC system and have the budget for a superior system, you simply can't beat a variable speed system for energy efficiency and overall comfort.

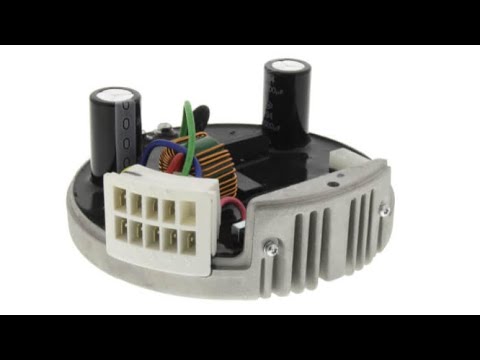

image-Are ECM motors quieter?

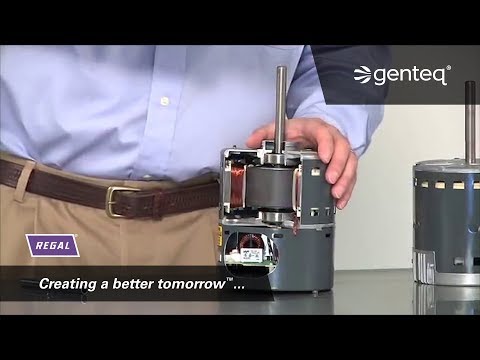

image-Are ECM motors quieter?

How much more efficient is an ECM motor?

At low speed the ECM is over 30% more efficient than a standard induction motor. The ECM motor has a minimum efficiency of 70% throughout its entire operating range. Conventional induction motors become less efficient at the reduced speeds that are typically selected for fan powered applications.


What is the difference between an ECM motor and a variable speed motor?

The word “variable speed” refers to the blower motor that is inside your air handler or furnace. ... An ECM's are types of DC motors that function with a built-in inverter and a magnet rotor. Together, these components can achieve higher levels of efficiency than most of the AC motors being used today.Jan 23, 2020


What is an ECM electric motor?

  • ECM stands for an “electronically commutated motor” which basically means a motor that uses electronic controls to vary its speed. There are three types of ECM motors: constant cfm, constant rpm, and constant torque.


What is ECM fan motor?

  • ECM Variable Speed Fan Motors. This is just one term used to identify a type of motor that is also called DC fan motors, EEM fan motors, Variable Speed fan motors and other names. In a traditional DC motors, permanent magnets replace the stationary part (stator), and copper windings are built into the spinning part (rotor).


What is a furnace ECM?

  • When furnaces produce heat, they need a motorized fan to circulate the air throughout the structure. An ECM furnace is equipped with an ECM (electronically commutated motor) to circulate hot air into the ducts that run through the walls of the building.


What is HVAC fan motor?

  • Fan Motor – The motor has blades attached to move a volume of air. In Hvac terminology the fan motor refers to the condensing unit while the blower motor refers to the air handler. Flooded – HVAC specific term. When either the condensing coil or evaporator coil contains excessive liquid refrigerant.


What is an ECM motor in HVAC?What is an ECM motor in HVAC?

ECM (electronically commutated motor) In residential and light commercial HVAC, we have seen ECM (Variable-Speed/X13) motors for years, primarily in blower motors but sometimes even in condenser fan motors. The first thing to know is that an ECM motor is a “Brushless” DC (direct current) motor.


What is a constant torque ECM motor?What is a constant torque ECM motor?

But for ease of discussion, I’m going focus on a Constant Torque ECM motor. A Constant Torque ECM is made up of two parts, the motor and ECM Microprocessor, that are both housed in one shell. The microprocessor is the “brains” of the motor. It holds the logic that controls the motor.


Do I need an ECM for my furnace?Do I need an ECM for my furnace?

ECM-equipped systems, when properly configured, can increase dehumidification, reduce register noise, conserve electricity, and provide trouble-free service. A furnace or air handler with an ECM can work flawlessly when mounted on a good vent, coil, and filtration device with static pressures under reasonable design parameters.


Should I choose a variable speed motor for my HVAC system?Should I choose a variable speed motor for my HVAC system?

If you’re looking for new HVAC installation for your home, we strongly recommend that you pick a system with variable speed motors. Ask you installer about the option available for ECM motors. Russell’s Heating & Air Conditioning offers superb HVAC services, including high efficiency air conditioning and heating, for Palm Desert, CA.
