Can I run fan on single phase?

What is a single phase fan?

A single-phase motor is an electrically-powered rotary machine that can turn electric energy into mechanical energy. It works by using a single-phase power supply. ... Their power can reach 3Kw and supply voltages vary in unison.Sep 27, 2018

What is single phase AC motor?

A single-phase motor with a coil winding is the simplest type of AC motor but needs a starting mechanism. This leads to the three main types of single-phase induction motor: shaded-pole, split-phased, and capacitor motors.

Can we use 3 AC in single-phase?

So for example if there are three Air Conditioners, then each can be set up on each of the phases, thus not putting excess load on any one phase. In case one of the phases fails due to a fault at the distribution point, the other two phases keep running and this prevents complete blackout of the setup.Nov 30, 2019

Can we use 2 AC in single-phase?

You can, yes. The main MCB has a current rating of at least 25 ampere. If you use 1.5 ac, it has max load current of 7 to 8 amperes for a single ac, and the MCB size is to be selected.

Is 240V single-phase?

Because we only measure across two wires, both 120V and 240V are referred to as single-phase power. (It's rare to find three-phase AC power in residential situations). Neutral and ground are related but serve different roles. The neutral wire is the current return path for 120V circuits.Nov 2, 2016

Is 240V single-phase or 2 phase?

240V residential power in the US is single phase, delivered by a center-tapped transformer winding with the CT grounded. 120 from either end to center (neutral), or 240V across the 2 ends of the winding. In NYC, 3 phase 120/208 is the residential distribution in all homes.

What are the 5 types of a single-phase motor?

There are 5 types of single-phase induction motors on the basis of their starting methods: Resistance start, Capacitor start, Capacitor start capacitor run, Permanent Capacitor, and shaded-pole single-phase induction motor. Each of them is discussed in detail below.Jul 23, 2021

Can a single phase motor run without a capacitor?

A single phase capacitor run motor will not be able to start without capacitor, since torque is missing. Motor is not designed to give full torque without capacitor. So even if it were to mechanically start with a force, it doesn't achieve full speed, and will not be able to take load.

Is single phase motor self-starting?

We can easily conclude that the single-phase induction motors are not self-starting because the produced stator flux is alternating in nature and at the starting, the two components of this flux cancel each other, and hence there is no net torque.Oct 14, 2020

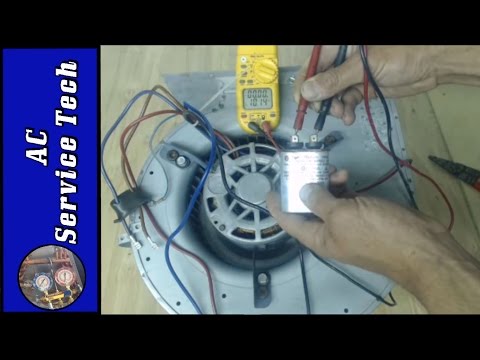

image-Can I run fan on single phase?
image-Can I run fan on single phase?

Is a single phase induction motor self-starting?

Single-phase induction motors are not self-starting without an auxiliary stator winding driven by an out of phase current of near 90°. Once started the auxiliary winding is optional. The auxiliary winding of a permanent split capacitor motor has a capacitor in series with it during starting and running.


Can 10 hp motor run on single phase?

Customize 10 hp VFD with single phase 220v-240v input, this 10hp VFD can be used as a phase converter to convert 1-phase to 3-phase to drive three phase AC motors. Customize made 10 hp variable frequency drive, 1-phase 220v-240v input, 3-phase output, it can be considered as a phase converter.


What is the biggest single phase motor?

The largest single-phase motors suitable for residential use top out at 10 horsepower. A few commercial applications may be found for higher voltage single-phase motors at up to 15 horsepower, but these are rare and require 480 volts of single-phase current to operate.Sep 26, 2017


What are single-phase motors used for?

  • Single-phase motors are used to power everything from fans to shop tools to air conditioners. Residential power is usually in the form of 110 to 120 volts or 220 to 240 volts.


Can a single phase motor be wired for 230 volts?

  • Electric single-phase motors have many uses. Single-phase motors are used to power everything from fans to shop tools to air conditioners. Residential power is usually in the form of 110 to 120 volts or 220 to 240 volts. Wiring a motor for 230 volts is the same as wiring for 220 or 240 volts.


How many windings are used in a single phase induction motor?

  • In a single-phase induction motor, there are two winding are used in stator except in shaded-pole induction motor. Out of these two windings, one winding is the main winding and the second is auxiliary winding. The stator core is laminated to reduce the eddy current loss.


How does a three phase motor work?

  • The current in the stator of a three phase motor (the stationary coils in the motor) sets up a rotating magnetic field. The magnetic field rotates due to the 120° phase offset in each phase of the power supply. This rotating magnetic field induces a current in the bars of the rotor. The current in the rotor sets up its own magnetic field.
