How do you size a ground source heat pump?
Ground Source Heat Pump Systems Design ICAX IHT™ systems are designed to give optimum performance for the capital outlay for each ground source heat pump project. In order to ensure that thermal balance is achieved, ICAX performs a full thermal modellingexercise as part of the turnkey supply of IHT™.
How much electricity does a ground source heat pump use?
A ground source heat pump can deliver 3 to 4 kilowatts (kW) of heat for every 1 kW of electricity it consumes. Using freely available heat energy from the ground, it achieves higher efficiency than any other heating system.
How do you size a ground source heat pump?
How big or small is the heat pump I need? Answer: Generally, the bigger the house the bigger the heat pump. Depending on heat loss, property age, and room types, a 100 sq m house may need a 4kW ground source heat pump or a 5kW air source heat pump. This doubles to 8kW or 10kW respectively for 200 sq m houses.
How deep does a ground source heat pump need to be?

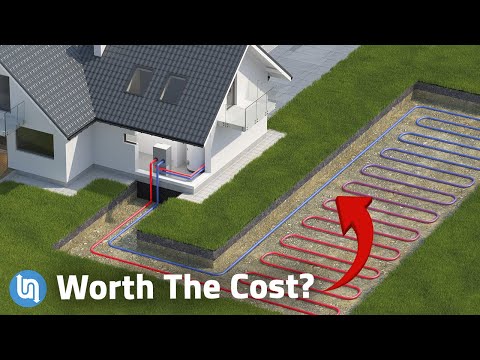

There are two main elements of a ground source heat pump system: The ground array, which can be either a horizontal grid of pipes, which should be 1.2m below ground level, or two or three vertical boreholes, which are likely to be more than 70m deep.Nov 12, 2021
How much space is needed for a geothermal heat pump?
A useful benchmark: about 400 to 600 feet of horizontal loops are needed for each ton of energy required to heat or cool. A mid-sized house usually requires a 3 ton unit, and so it would need space for approximately 1200 t0 1800 feet of coils.Nov 15, 2013
How many feet of pipe do you need for geothermal?
As a rule of thumb, 500-600 feet of pipe is required per ton of system capacity. A well-insulated 2,000 square-foot home would need about a three-ton system with 1,500 - 1,800 feet of pipe.
Do ground source heat pumps work in winter?
Ground Source Heat Pump – GSHP
A ground source heat pump extracts heat from the ground – whose temperature will be warmer than the air in winter (and cooler than the air in summer). For this reason they are more efficient than air source heat pumps, especially in the coldest weather when they are most needed.
Can I install a ground source heat pump myself?
Installing a GSHP into your home is not an easy task and is not typically carried out by the homeowner. There are many considerations, including the sizing, design and installation that requires expertise to ensure the most efficient heating system.
What is the cost of installing a ground source heat pump?
What is the cost of installing a ground source heat pump in Britain? Answer: A 6-8 kW horizontal ground source heat pump system usually costs around £10,000 to £12,500 to install. A larger 12kW horizontal ground source heat pump system would cost around £15,500 to £17,500 to install.
How long does it take to install a ground source heat pump?
The installation of a ground source heat pump typically takes one to two days for a professional installer to complete.
Related questions
Related
How far down do you have to drill for geothermal?
How deep do you have to dig? For a horizontal loop you only need to dig between 6 - 8 feet deep. For a vertical loop you need to drill between 250 and 300 feet deep.
Related
Can geothermal pipes freeze?
If a loop pipe, a loop fitting, the loop pump assembly or any other 30 degree cold surface in the home is left exposed, it will first condense moisture and then the moisture will freeze or at least frost over. This is normal and should not cause any problems with the operation of the geothermal heating.Feb 12, 2014
Related
How deep do you bury geothermal lines?
You have to bury the lines deep enough so that they are completely unaffected by the frost. Usually, that means anywhere from four to six feet deep, though your technician may wish to go a little deeper based on existing trends.
Related
How much does a ground source heat pump cost?
- A ground source heat pump can cost as much as $30,000 to install or more. Look at incentive programs in different states to see if you can get a discount on your installation. Or, talk to a geothermal energy pro to get more information on the project.
Related
What exactly are ground source heat pumps?
- About Ground Source Heat Pumps. Ground heat pumps or geothermal heat pumps were first theorized in 1852 by William Thomson,1st Baron Kelvin.
- Ground Source Heat Pumps Efficiency. ...
- The Geothermal Heat Pump System. ...
- The Parts of Ground Heat Pumps. ...
- Benefits of Geothermal Heat Pumps. ...
Related
What is the difference between geothermal and heat pump?
- The most obvious difference between air source heat pumps and geothermal heat pumps is the where they get their heat. Air source heat pumps collect heat from the outside air, while geothermal heat pumps absorb heat from the ground.
Related
Should you purchase a geothermal heat pump?
- If you're building a new home or upgrading your HVAC system, you need to consider a geothermal heat pump. However, before you buy, you really should understand geothermal property requirements to determine if your home can properly accommodate the technology.
Related
What are the different types of ground source heat pumps?What are the different types of ground source heat pumps?
There are two main types of ground source heat pump systems: those that are “Ground Water” (also called Open Loop) and those that are “Ground-Coupled” (also called Closed Loop), see Figure 1 below.
Related
What is a ground-coupled heat pump system?What is a ground-coupled heat pump system?
Clearly, a ground-coupled heat pump system installed in a climate like this will be extracting more heat per year than it rejects per year to serve the envelope loads of a given building. This creates an imbalance for the geo-exchange wells for a heat pump system that is sized to handle the entire heating load of a building.
Related
Is a ground source heat pump cheaper than a gas heater?Is a ground source heat pump cheaper than a gas heater?
Based on current fuel prices, assuming a CoP of 3-4, a ground source heat pump can be a cheaper form of space heating than oil, LPG and electric storage heaters. It is however more expensive than mains gas. If grid electricity is used for the compressor and pump, then an economy 7 tariff usually gives the lowest running costs .
Related
How many units of heat does a heat pump produce?How many units of heat does a heat pump produce?
Ground source heat pumps Ground source heat pumps can pump heat from the ground into a building to provide space heating and domestic hot water. For every unit of electricity used to pump the heat, 3-4 units of heat can be produced. Example of a ground source heat pump system.
