How does a crane brake work?

Crane often needs to start, brake or stop. ... The crane brake system has the following functions: Support; Speed regulation or speed limit; Braking. Brake: use friction to convert part or all kinetic energy of mechanical motion into heat energy, and achieve the purpose of deceleration or braking.Dec 25, 2017

Which type of brakes are used in electric crane?

In cranes only one type of braking system is used known as thruster braking system. In case of the component failure this thruster braking system is not capable of holding the load.

Do cranes have brakes?

For any Man box work with a mobile crane, the crane must have a secondary brake on the winch drum. If you can't see two brake calipers on the winch drum, the crane does not meet standards for man box work. The only exception would be where paperwork from an engineer shows that a secondary brake has been fitted.

What is hoist brake?

Hoist Brakes consist of shoe or disc brakes on the high speed side of the motor which are typically Thruster Disc Brakes, Thruster Drum Brakes, or Magnetic Drum Brakes.May 16, 2016

What is hoist motor?

A hoist is a device used for lifting or lowering a load by means of a drum or lift-wheel around which rope or chain wraps. It may be manually operated, electrically or pneumatically driven and may use chain, fiber or wire rope as its lifting medium. ... Most hoists couple to their loads using a lifting hook.

What is propel brake in crane?

Crawler brakes: Spring-set, hydraulically released parking brakes are built into each propel drive. Steering mechanism: A hydraulic propel system provides both skid steering (driving one track only) and counter-rotating steer- ing (driving each track in opposite directions).

How does a electromagnetic brake work?

An electromagnetic brake uses an electric actuation but transmits torque mechanically. When the brake receives voltage or current, the coil is energized, creating a magnetic field. This field turns the coil into an electromagnet that creates magnetic lines of flux. The magnetic flux attracts the armature.

Why are mechanical brakes often used on cranes?

Why are mechanical brakes often used on cranes? Mechanical type brakes have an advantage in that they can hold a suspended load. ... The braking time can be controlled be adjusting the resistance value. Name three factors that determine the amount of induced voltage.

How does brake hoist work?

The general principle of operation is that when hoist lowering is selected, the holding brake will be released (electrically released, spring applied) and the load wants to fall. A latching mechanism, usually a pawl type, engages and a ratchet friction disc is held stationary.Feb 1, 2002

What is a holding brake?

The function of holding brakes / motor brakes is to retain loads. (In contrast to control brakes or stopping brakes, which delay moving masses and power brakes, which generate a counter torque for drive assemblies.) Holding brakes / motor brakes are intended to stop shafts from starting up from standstill.

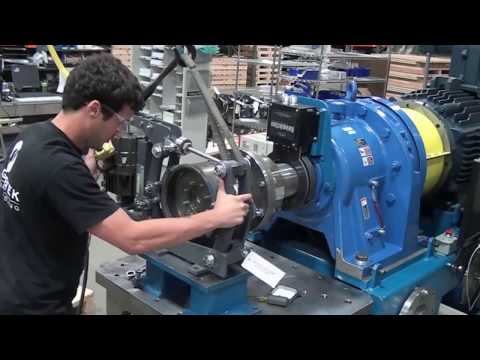

image-How does a crane brake work?
image-How does a crane brake work?

What is thruster brake?

Thruster brake is a device to retard the speed of moving machinery and to stop it accurately to the desired position. The braking force is applied to the brake shoe by a pre-stressed compression spring. ... The releasing of the brake and compressing of the spring is done by the Thruster.


What is crane brake system?

  • Crane brake system: overhead crane brake system & gantry crane brake system 25 Dec, 2017 Crane often needs to start, brake or stop. Therefore, a good and reliable crane brake device is needed. crane brake system is divided into brake and stop.The crane brake system has the following functions: Support; Speed regulation or speed limit; Braking.


What are the benefits of overoverhead crane brake systems?

  • Overhead cranes with older brake systems can benefit from newer technologies like wear sensors and auto-adjust features. Auto-adjust features make sure the brake is always in proper adjustment, and doesn’t require maintenance or service personnel to manually and repeatedly adjust the brakes.


How often should the crane brake be checked?

  • The crane brake of the lifting mechanism must be checked once every operation starts; the crane brake of the running mechanism should be inspected every two to three days. Stress inspection: Transmission system of crane brake; Crane brake wheel; Crane brake belt; Crane brake lever system; Hydraulic system.


What kind of brakes do I need for my EOT crane?

  • Kor-Pak provides disc, drum, and storm brakes for EOT cranes that can be used for bridge, trolley, and hoist motions and can be used as service, holding, and emergency brakes. There are various types of brakes that can be successfully used for bridge and trolley motions.
