How is optical comparator used?

How to Use an Optical Comparator. Place the target on the stage. Position the scale on the zoomed image projected on the screen, and then measure the dimensions. The XY stage can also be used to measure the dimensions according to the amount of stage movement. Some optical comparators use a scale that is read by pinching the target.

How do you calibrate an optical comparator?

The correct way to calibrate the screen with a master glass scale on the stage, magnify it on the screen and measure the image projected by another glass reading scale. If an overlay is not used or magnified, the image on the screen is never measured. In this case, the magnified accuracy should not be a problem.Jun 1, 2005

Are optical comparators still used?

Optical comparators have been used for more than five decades and they still remain a cost-effective and versatile technology for monitoring the quality and processes of a wide range of manufactured parts.Dec 3, 2017

What is a profile projector used for?

The profile projector is widely used for complex-shape stampings, gears, cams, threads and comparing the measured contour model.

Is an optical comparator a CMM?

Overview. An optical CMM, similar to optical comparators and measuring microscopes, is a non-contact instrument that uses images to perform measurements.

What is mechanical optical comparator?

In mechanical optical comparators small displacements of the measuring plunger are. amplified first by a mechanical system consisting of pivoted levers. The amplified mechanical. movement is further amplified by a simple optical system involving the projection of an image.

How does an Autocollimator work?

An autocollimator works by projecting an image onto a target mirror and measuring the deflection of the returned image against a scale, either visually or by means of an electronic detector.

What is a pneumatic comparator?

A pneumatic comparator is a precision device operated using a pneumatic system or compressed air. Like other mechanical, optical, and electrical comparators, pneumatic comparators are also used to analyze the dimensional difference between the workpiece to be measured and the standard workpiece.Jun 11, 2021

Whats a comparator do?

A comparator circuit compares two voltages and outputs either a 1 (the voltage at the plus side) or a 0 (the voltage at the negative side) to indicate which is larger. Comparators are often used, for example, to check whether an input has reached some predetermined value.

What are comparators Minecraft?

A redstone comparator can measure the fullness of a chest, as well as other block states, even through a block. A redstone comparator treats certain blocks behind it as power sources and outputs a signal strength proportional to the block's state.

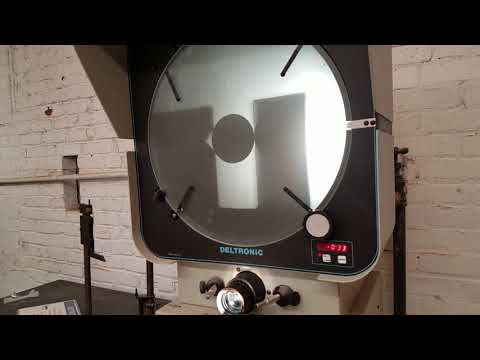

image-How is optical comparator used?
image-How is optical comparator used?
Related

What is Tool Maker microscope?

Holmarc's Tool maker's microscopes are multi-functional measuring instruments which are primarily used for inspection and measurement of miniature mechanical and electronic parts and tools. These microscopes are used to view and measure linear distances, thread pitch, thread angles, tool edges, tool wear surfaces etc.

Related

What are the advantages of using an optical comparator?

  • High accuracy will be achieved since it is having very less moving parts.
  • Parallax error will be avoided.
  • Less weight compared to other comparators due to fewer parts.
  • Very Suitable for precession measurements due to high magnification can be achieved.

Related

What is the purpose of a comparator?

  • A comparator consists of a specialized high-gain differential amplifier. They are commonly used in devices that measure and digitize analog signals, such as analog-to-digital converters (ADCs), as well as relaxation oscillators.

Related

What is the function of comparator?

  • The comparator function takes two arguments and contains logic to decide their relative order in sorted output. The idea is to provide flexibility so that qsort () can be used for any type (including user defined types) and can be used to obtain any desired order (increasing, decreasing or any other).

Related

What is a comparator measuring instrument?

  • a measuring instrument used to compare linear quantities with a measure or scale. A comparator measures the difference between two quantities whose nominal magnitudes are close; this provides high precision of measurement.

Related

What is an optical comparator for quality control?What is an optical comparator for quality control?

The basic concept of an optical comparator for quality control use is to take that idea of the overhead projector and package it all up inside a box so that the optical distance between the part and the screen is fixed, known and can be calibrated.

Related

How does a comparator work?How does a comparator work?

The basic concept of the comparator is that a part is affixed to a stage, a light source shines on it, and the resulting shadow image of the part is magnified with lenses and bounced by mirrors, to be projected on the back of a screen for magnified viewing, pretty much just like our overhead projector example.

Related

What are the different screen sizes for optical comparators?What are the different screen sizes for optical comparators?

Screen sizes for optical comparators range from 12 to 36 inches, though models with larger screens are available. However, larger screen sizes are only possible with larger enclosures, as a greater distance is required to generate a bigger image without distortion. Another way that optical comparators differ is in the measuring processes they use.

Related

What is the difference between traditional and modern optical comparators?What is the difference between traditional and modern optical comparators?

Although traditional optical comparators can obtain very accurate measurements, today’s modern parts require tighter tolerances, reducing the room for error that is allowed with any manual measurement method. Labor intensive: Traditional optical comparators can only measure one part at a time.
