What does LCR meter measure?

What does LCR stand for in LCR meter?

Definition: LCR meters can be understood as a multimeter, this is because it can measure resistance, inductance, capacitance as per the requirement. Thus, it is termed as LCR meter. L in its name signifies inductance, C stands for capacitance and R denotes resistance.

What are the types of LCR meter?

There are two LCR meter types viz. benchtop and handheld. Benchtop are developed for bench applications and hence are kept at fixed location without much of movement. Handheld are developed for portable applications and hence can be moved around for test and measurement purpose.

When would you use an LCR meter?

An LCR meter is ideal for performing direct and precise measurements of inductors, capacitors and resistors using different test frequencies. The test area can be selected manually or automatically.

What is the difference between multimeter and LCR meter?

Simply put, LCR meter measures the characteristic parameters of separate components, such as resistance value, capacitance value, etc. It generally needs to be tested independently after power failure. Multimeter is a multifunctional measuring instrument.Jan 31, 2021

What is LCR Q Bridge?

Product description. DIGITAL LCR Q METER OR DIGITAL INDUCTANCE METER is Useful for measurement of winding inductance and resistance of coil, transformer, motors, wires, cables, relays, chokes etc. and capacitance of capacitors, wire, cables etc. Superior performance employing LSI IC's.

What is the use of Q meter?

The Q meter measures the quality factor of the circuit which shows the total energy dissipated by it. It also explains the properties of the coil and capacitor. The Q meter uses in a laboratory for testing the radio frequency of the coils.

What is the HP 4263b LCR meter?

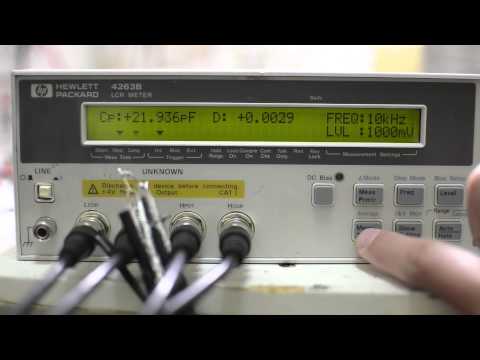

  • HP 4263B LCR meter is Hewlett-Packard's most cost-effective low-end LCR meter, designed for both component evaluation on the production line and fundamental impedance testing for bench-top applications. The 4263B has five test frequencies that allow you to simulate testing under the correct conditions: 100 Hz, 120 Hz, 1 kHz, 10 kHz, and 100 kHz.

What is the serial number for Agilent 4263b LCR meter operation manual?

  • Agilent 4263B LCR Meter Operation Manual SERIAL NUMBERS This manual applies directly to instruments which has the serial number pre\\fx JP1KD , or \\frmware revision 1.0. F or additional important information about serial numbers , read \\Serial Number" in Appendix A. Agilent P art No . 04263-90050 Printed in JAP AN March 2003 Sixth Edition

What is the test frequency of the 4263b?

  • The 4263B has five test frequencies that allow you to simulate testing under the correct conditions: 100 Hz, 120 Hz, 1 kHz, 10 kHz, and 100 kHz. An optional 20 kHz test frequency can be added to those five frequencies Option 002).

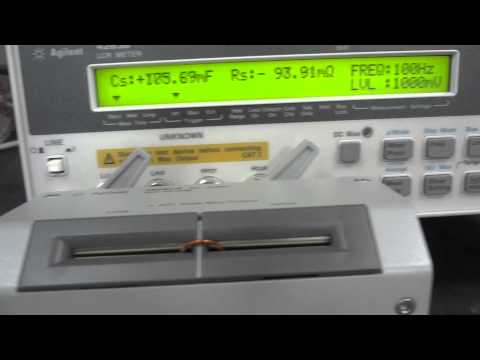

image-What does LCR meter measure?

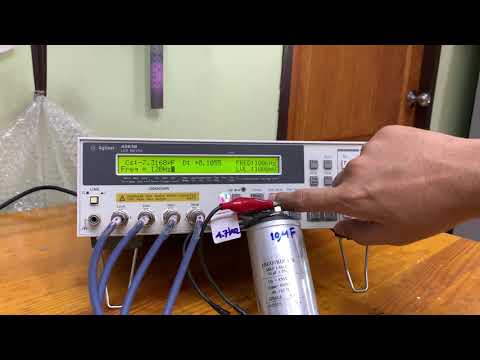

image-What does LCR meter measure?

Why use the 4263b for electrolytic capacitors?

  • The 4263B's accuracy and wide measurement range are the right tools to make precise measurements of electrolytic capacitors. Charged capacitors can discharge through the front end and destroy an instrument. The 4263B's front end is designed for protection and maintains test integrity.
