What is dew point control?

What is a good dew point setpoint?

General comfort levels USING DEW POINT that can be expected during the summer months: less than or equal to 55: dry and comfortable. between 55 and 65: becoming "sticky" with muggy evenings. greater than or equal to 65: lots of moisture in the air, becoming oppressive.

What is the only way to change dew point?

If you reduce the amount of water vapor present in the air, you reduce the dew point temperature (the point at which the air is saturated); if you add water vapor to the air, you increase the dew point temperature.

How can dew point be reduced?

Condensation can be prevented by: increasing the temperature of the object to be protected keeping it above dew point temperature. reducing the dew point temperature of the air around the object, for example, by implementing an air-drying system.

What is the formula for dew point?

The dew-point temperature ( ) of a sample of air with vapor pressure is the temperature to which it must be cooled to become saturated, i.e. it is defined by the equation e = e s ( T d ) .

Can dew point change?

No. Dewpoint will not change as the system temperature changes below the saturation point. If the system temperature is at or below the dewpoint temperature in a closed system, the dew point will change because the water vapour is removed from the air.Aug 11, 2016

How do you read dew point?

The higher the dewpoint is, the more moisture that is in the air. The higher the dewpoint is above 65 F, the stickier it will feel outside (feels like you have to breathe in a bunch of moisture with each breath). 75 F or above dewpoint, the air really feels sticky and humid. RH can be more difficult to explain.

What humidity level is uncomfortable?

While there's no set humidity threshold above which general comfort level begins to deteriorate, NOAA typically considers relative humidity (RH) levels of 50% or more, and dewpoints (a more direct measure of humidity) above 65 F (18 C) to be uncomfortably high.Jun 21, 2021

What is the highest dew point ever recorded?

The highest dew point ever recorded, 95°F (35°C), was recorded at Dhahran, Saudi Arabia, on July 8, 2003. With an air temperature of 108°F (42°C) the heat index was 178°F (81°C).

What causes high dew point?

When air cools to its dew point through contact with a surface that is colder than the air, water will condense on the surface. The measurement of the dew point is related to humidity. When there is more moisture in the air, the dew point is higher.

image-What is dew point control?
image-What is dew point control?

Does a dehumidifier lower the dew point?

Dehumidification is the most effective and efficient way to lower the relative humidity of an area. Using the dew point, mechanical dehumidification systems are designed to condense the air on the coil into liquid water, which can then be removed from the desired area.Jun 21, 2018


What does a dew point tell you?

  • The dew point is the temperature to which air must be cooled to become saturated with water vapor. When further cooled, the airborne water vapor will condense to form liquid water (dew). ... In technical terms, the dew point is the temperature at which the water vapor in a sample of air at constant barometric pressure condenses into liquid water at the same rate at which it evaporates.


What factors determine the dew point?

  • The two main factors which affects the dew point are Temperature and amount of moisture present in the air.

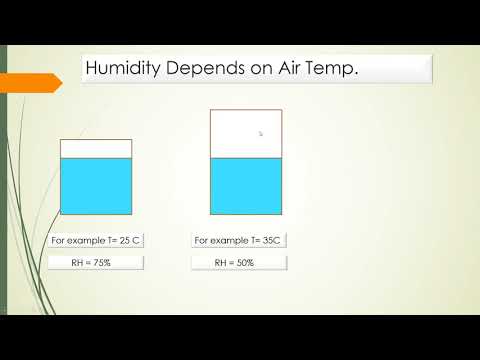

How does dew point compare with humidity?

  • The dew point is associated with relative humidity. A high relative humidity indicates that the dew point is closer to the current air temperature. Relative humidity of 100% indicates the dew point is equal to the current temperature and that the air is maximally saturated with water.


Do clouds form at the dew point?

  • Simply put, the dew point is the temperature at which clouds will begin to form. So if the dew point is 2 degrees C, and the temperature is 2 degrees C, then you can expect to start to see mist and, given a light wind to mix the water vapour up, some fog.


Why do we need dew point control in natural gas pipelines?Why do we need dew point control in natural gas pipelines?

Controlling dew point is also necessary to qualify the pipeline to market gas to high efficiency gas turbine end users that require a dry and consistent quality fuel. Pipelines use two main methods to specify contractual natural gas hydrocarbon dew points.


What is hydrocarbon dew point and why control it?What is hydrocarbon dew point and why control it?

Why Control Hydrocarbon Dew Point? Dew point is defined as the temperature at which vapor begins to condense. We see it in action every foggy morning. Air is cooled to its water dew point and the water starts condensing and collects into small droplets.


What is the dew point for gas conditioning plants?What is the dew point for gas conditioning plants?

A typical approach for many gas conditioning plants designed to produce pipeline quality gas from a sour gas feed is shown in Figure 1. Typical hydrocarbon dew point specification for pipeline gas is 14°F (-10°C).


How to model a simple dew point control system in HYSYS V10?How to model a simple dew point control system in HYSYS V10?

Steps to set up a simulation in HYSYS v10 to model a simple dew point control system consisting of:  Gas chiller  Flash separator  Liquid stabilizer with gas recycle & compression  Product gas compression  Simple propane refrigeration loop When the simulation is set up the overall PFD should look like the following figure. Basis
