What is magnetic pump?
What is magnetic pump?
Magnetic drive pumps, also known as magnetically coupled pumps, vary from the traditional pumping style because the electric motor (the driver) is coupled to the pump by magnetic means rather than by a direct mechanical shaft. The pump works via a drive magnet that eliminates any shaft sealing required by the pump.Oct 8, 2018
How does a magnetic water pump work?
In a magnetic drive pump, the impeller and motor have magnets attached to them. Permanent magnets are attached to the pump's drive assembly. The drive magnet, the magnet responsible for driving the inner rotor, is attached on a second shaft operated by the motor. When the motor turns on, it spins its magnet.
How does a magnetic drive work?

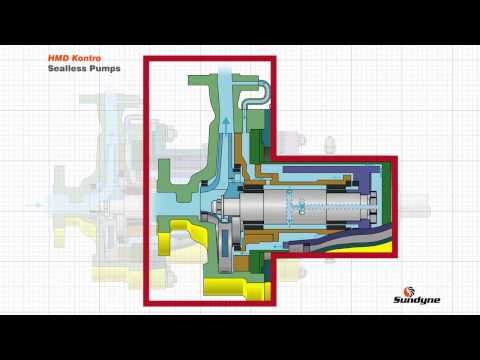

In a magnetic drive centrifugal pump, the impeller and the pumped fluid are contained within a hermetically sealed housing. The drive shaft from the motor rotates an assembly of magnets on the outside of the housing. ... Torque is transferred through the housing as a result of the coupled magnets.
How does a magnetic sealless pump work?
The principle of operation is very simple. The magnets in the outer and inner magnet rings are attracted to each other, so as the electric motor rotates, the outer ring and the inner ring rotate at the same speed, thus rotating the impeller and causing liquid to be pumped.Sep 12, 2018
What are peristaltic pumps used for?
Peristaltic pumps are a type of positive displacement pump used for pumping a variety of fluids. The fluid is contained within a flexible hose or tube fitted inside the pump casing.
Do magnetic motors really work?
A magnet motor or magnetic motor is a type of perpetual motion machine, which is intended to generate a rotation by means of permanent magnets in stator and rotor without external energy supply. Such a motor is theoretically as well as practically not realizable.
What is sealless pump?
A sealless mag drive pump is a conventional centrifugal pump without the dynamic seal that would normally be used to seal the pump shaft. This dynamic seal is replaced by a static containment shell to form a completely sealed liquid end or pressure boundary.Aug 23, 2017
What does an impeller do?
WHAT DO IMPELLERS DO? Impellers pump cold water into your boat's engine to cool it down while in use. If you have a bad impeller it can cause big problems.
What is a pump drive?
In its most basic form, a pump drive is a simple gearbox that is placed between an engine or electric motor and a system's hydraulic pump(s) to provide a way to couple them.Aug 19, 2021
How do you prime a magnetic drive pump?
To prime, pour liquid into the outlet tubing or piping and allow it to fill the pumping chamber. The pump will normally prime with less effort when a foot valve is installed at the end of the suction line; this will also eliminate the need to reprime each time the pump is turned off.
What type of pump is a screw pump?
A screw pump is a rotary pump which is a form of a positive displacement pump and it delivers a known quantity of fluid for every revolution.
What is a hydraulic gear pump?
A gear pump uses the meshing of gears to pump fluid by displacement. They are one of the most common types of pumps for hydraulic fluid power applications. ... Gear pumps are positive displacement (or fixed displacement), meaning they pump a constant amount of fluid for each revolution.
What is a canned motor pump?
A CANNED MOTOR PUMP IS COMPOSED OF: A TRADITIONAL CENTRIFUGAL HYDRAULIC & A SPECIAL SQUIRREL CAGE MOTOR CONNECTED IN A ONE PIECE ASSEMBLY. ... The pump liquid circulates through the rotor chamber, cooling the motor, and lubricating the slide bearings that support the rotor.
What is a seal in engineering?
A mechanical seal is a device that helps join systems or mechanisms together by preventing leakage (e.g. in a pumping system), containing pressure, or excluding contamination. ... A stationary seal may also be referred to as 'packing'.
How does a magnetic drive pump work?
- How a Magnetic Drive Pump Works. The drive magnet, the magnet responsible for driving the inner rotor, is attached on a second shaft operated by the motor. When the motor turns on, it spins its magnet. The magnetic force from the motor’s magnet causes the magnet on the impeller to spin and rotate the impeller.
How do magnetic drive pumps work?
- Magnetic Drive pumps vary from the traditional pumping style as the motor is coupled to the pump by magnetic means rather than by a direct mechanical shaft. The pump works via a drive magnet, ‘driving’ the pump rotor, which is magnetically-coupled to the primary shaft driven by the motor.
What is a magnetic driven pump?
- Lower Mass for Specific Torque -. Magnetic drive pumps can be smaller and less complex because less mass is required to maintain specific torque levels during operation.
- Improved Temperature Stability -. ...
- Increased Power and Efficiency -. ...
- KMLF Low Flow -. ...
- K Plus -. ...
- KV -. ...
- KM -. ...
- KP -. ...
