What is meant by rigid pavement?

Rigid pavements are constructed of portland cement concrete slabs resting on a prepared subbase of granular material or directly on a granular subgrade. Load is transmitted through the slabs to the underlying subgrade by flexure of the slabs.

What is rigid pavement and its types?

Rigid pavements can be classified into four types: ... Jointed reinforced concrete pavement (JRCP), Continuous reinforced concrete pavement (CRCP), and. Pre-stressed concrete pavement (PCP).Aug 3, 2009

What is a rigid pavement construction?

A rigid pavement is constructed from cement concrete or reinforced concrete slabs. Grouted concrete roads are in the category of semi-rigid pavements. The design of rigid pavement is based on providing a structural cement concrete slab of sufficient strength to resists the loads from traffic.Dec 8, 2014

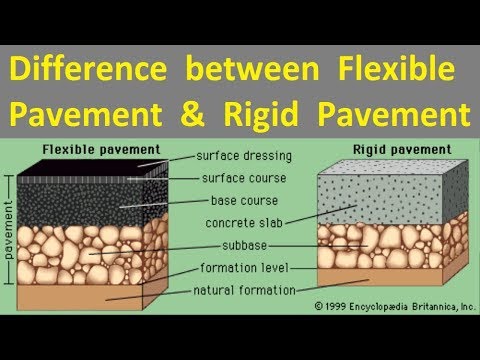

What is difference between rigid and flexible pavement?

Flexible pavements tend to have more layers and are therefore much thicker by default. Rigid pavements have fewer layers and are thinner than flexible pavements, which makes them susceptible to more repairs over time.Feb 12, 2019

Where do we use rigid pavement?

There are two main types of road construction. “Rigid pavement,” such as concrete, can only be used on stable ground. “Flexible pavement,” such as bituminous materials, as described below, can be used on ground where some movement is expected.

What is subgrade in pavement?

In transport engineering, subgrade is the native material underneath a constructed road, pavement or railway track (US: railroad track). It is also called formation level. The term can also refer to imported material that has been used to build an embankment.

What is semi rigid pavement?

The Semi Rigid Pavement (SRP) is an alternative solution to overcome the limitations caused by conventional pavements, i.e. Flexible (asphalt concrete) and Rigid (cement concrete) pavements, which consists both the flexibility from asphalt component and the rigidity from cement constituent.Feb 19, 2020

What is the advantage of rigid pavement?

The largest advantage for using rigid pavement is its durability and ability to hold its shape against traffic and difficult environmental conditions. Although concrete pavement is less expensive, it requires less maintenance and has a good design life.

How do you make a rigid pavement?

Design of rigid pavements is based on Westergaard's analysis, where modulus of subgrade reaction, radius of relative stiffness, radius of wheel load distribution are used. For critical design, a combination of load stress, frictional stress and warping stress is considered.

Why cement is used in rigid pavement?

In rigid pavement the stresses are not transferred from the grain to grain to the lower layers. ... The plain cement concrete slabs are expected to take up about 45kg/cm2 flexural stress. The rigid pavement has a slab action and is capable of transmitting the wheel load stresses through a wider area below.

image-What is meant by rigid pavement?
image-What is meant by rigid pavement?

What is the good requirement of rigid pavement?

Requirements of Good Rigid Pavement

~ It should be impervious enough to protect sub-grade soil. ~ It should have a high coefficient of friction to resist skidding. ~ It should be smooth enough to provide comfort to the users. ~ It should be structurally strong to withstand all types of loads.


Which pavement is best?

Concrete roads are highly durable and more environmentally friendly as compared to asphalt roads. However, asphalt paving costs far less than concrete paving. Also, asphalt road provides a little better safety of the vehicle against snow and skidding.


How many layers are there in rigid pavement?

A rigid pavement structure is typically composed of a PCC surface course built on top of either (1) the subgrade or (2) an underlying base course. Because of its relative rigidity, the pavement structure distributes loads over a wide area with only one, or at most two, structural layers (see Figure 1).


What is asphalt concrete pavement?

Asphalt Binder

Asphalt cement is used in hot mix asphalt. Liquid asphalt, which is asphalt cement dispersed in water with the aid of an emulsifying agent or solvent, is used as the binder in surface treatments and cold mix asphalt pavements.


What are the characteristics of rigid pavements?

  • Rigid pavements are constructed of portland cement concrete slabs resting on a prepared subbase of granular material or directly on a granular subgrade. Load is transmitted through the slabs to the underlying subgrade by flexure of the slabs.


Does rigid pavement crack under stress?

  • Rigid pavement may crack under stress. Rigid pavement is the technical term for any road surface made of concrete. Concrete roads are called rigid while asphalt -covered roads are flexible. These terms refer to the amount of deformation created in the road surface itself when in use and over time.


What are plain cement concrete pavements?

  • Plain cement concrete pavements slabs made of specified strength characteristics are laid, with or without steel reinforcement at the joints. The most common material used for the design and construction of rigid pavements is high-quality plain cement concrete meant for the pavement, generally called ‘Pavement Quality Concrete’ (PQC).


What is the minimum thickness of a reinforced concrete driveway?

  • Figure 6-2 Reinforced Rigid Pavement Design • The minimum thickness of reinforced concrete pavements should be 6 inches, except that the minimum thickness for driveways will be 5 inches and the minimum thickness for reinforced overlays over rigid pavements will be 4 inches.
