## What is reverse circular curve?

In civil engineering, a reverse curve (or "S" curve) is **a section of the horizontal alignment of a highway or railroad route** in which a curve to the left or right is followed immediately by a curve in the opposite direction.

**two circular arcs, AB and CD**, lying on the opposite sides of a common tangent (Figure 1). The radii of the two arcs are R 1 and R 2, and their central angles

## What is reverse curve when and where it is used?

Reverse curves are used **when the straights arc parallel or intersect at a very small angle**. They are commonly used in railway sidings and sometimes on railway tracks and roads meant for low speeds. They should be avoided as far as possible on main railway lines and highways where speeds are necessarily high.

## What is spiral curve?

The spiral is **a curve of varying radius used to gradually increase the curvature of a road or railroad**. Spiral curves are used primarily to reduce skidding and steering difficulties by gradual transition between straight-line and turning motion, and/or to provide a method for adequately superelevating curves.

## Why reverse curves are provided in the road?

Reverse Curve :

Reverse curves are **necessary on hill roads where frequently changes in the direction of travel is required**. Reverse curves are also necessary for cross-overs in station yards and in the alignment of the railway tracks in hilly areas.Nov 1, 2020

## What is horizontal transition curve?

HORIZONTAL TRANSITION CURVES :

Transition curve is **a curve in plan which is provided to change the horizontal alignment from straight to circular curve gradually** means the radius of transition curve varies between infinity to R or R to infinity.

## What is Summit curve?

Summit curves are **vertical curves with gradient upwards**. They are formed when two gradients meet as illus- trated in figure 17:2 in any of the following four ways: 1. when a positive gradient meets another positive gradient [figure 17:2a]. 2.

## How many types of horizontal curves are there?

A curve may be **simple, compound, reverse, or spiral** (figure l). Compound and reverse curves are treated as a combination of two or more simple curves, whereas the spiral curve is based on a varying radius. The simple curve is an arc of a circle.

## What is sag and crest?

Crest Curve: **A curve with a negative grade change** (like on a hill) Sag Curve: A curve with a positive grade change (like in a valley)Apr 30, 2021

## What are the elements of horizontal curves?

The horizontal circular curve can be described by seven elements: **(1) Radius of the curve; (2)deflection angle between tangents; (3) tangent distance**; (4) external distance; (5) middle ordinate; (6) long chord; and (7) length of the curve.

## Why reverse curve is not used in highways?

Explanation: A reverse curve is a combination of two simple curves in the opposite direction, which are not recommended to be provided in highways **as it can lead to overturning of vehicles**.

### Related questions

##### Related

### What is a reverse curve in surveying?

- FM 5-233
**Reverse**A**reverse curve**consists of two simple curves joined together but curving in opposite directions. For safety reasons, the surveyor should not use this**curve**unless absolutely necessary. Spiral The spiral is a**curve**with varying radius used on railroads and somemodern highways.

##### Related

### What is the minimum tangent length of a reverse curve?

- The minimum tangent length between the curves is equal to the sum of 70% of the tangent runoff length (L) for each
**curve**. Each of the curves in a**reverse curve**is treated in a similar manner as a**horizontal curve**(see Section 2A-1. ). Sections 2A-2 and 2A-3 provide more information concerning superelevation.

##### Related

### What is the difference between simple compound reverse and spiral curves?

- A
**curve**may be simple, compound,**reverse**, or spiral (figure 3-l). Compound and**reverse**curves are treated as a combination of two or more simple curves, whereas the spiral**curve**is based on a varying radius. Simple The simple**curve**is an arc of a circle.

##### Related

### What are the different types of curves in a curve?

- A
**curve**may be simple, compound,**reverse**, or spiral (figure 3-l). Compound and**reverse**curves are treated as a combination of two or more simple curves, whereas the spiral**curve**is based on a varying radius. Simple The simple**curve**is an arc of a circle.

##### Related

### What is a reverse curve alignment?What is a reverse curve alignment?

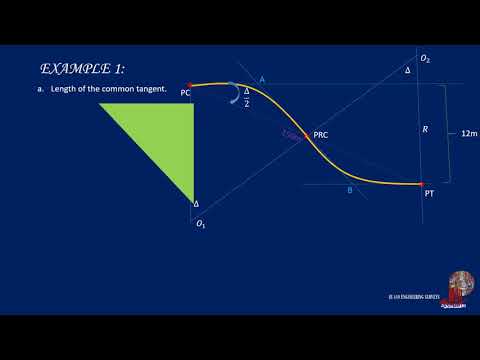

The alignment from PC (Point on Curve), to PRC (Point on Reverse Curve), to PT (Point on Tangent) above is known as a reverse curve. The driver has to go through a curve in the one direction and immediately adjust to steer in the other direction. There is no time for the driver to adjust to coming out of the curve.

##### Related

### What is a horizontal curve?What is a horizontal curve?

What Is A Horizontal curve? Types And Formulas - Engineering Discoveries. What Is A Horizontal curve? Types And Formulas. Horizontal curves are provided to change the direction or alignment of a road. Horizontal Curves is circular curves or circular arcs.

##### Related

### What is the minimum tangent length of a reverse curve?What is the minimum tangent length of a reverse curve?

The minimum tangent length between the curves is equal to the sum of 70% of the tangent runoff length (L) for each curve. Each of the curves in a reverse curve is treated in a similar manner as a horizontal curve (see Section 2A-1. ). Sections 2A-2 and 2A-3 provide more information concerning superelevation.

##### Related

### Why don't we use reverse curves on our roads?Why don't we use reverse curves on our roads?

This is because there is no room for the tangent between the curves. Sometimes, the tangent is only a few feet apart. Another reason that we don’t use reverse curves is because we typically superelevate our roadways. Another term for this is banking the roadway.
