What is the main use of capacitor?

A capacitor is an electrical component that draws energy from a battery and stores the energy. Inside, the terminals connect to two metal plates separated by a non-conducting substance. When activated, a capacitor quickly releases electricity in a tiny fraction of a second.

What is the main use of capacitor?

The most common use for capacitors is energy storage. Additional uses include power conditioning, signal coupling or decoupling, electronic noise filtering, and remote sensing. Because of its varied applications, capacitors are used in a wide range of industries and have become a vital part of everyday life.

How a capacitor works in AC circuit?

Explanation: In an alternating current circuit, due to periodic change of direction and pulsating value of the electric current, the capacitor plates continue to charge and discharge and then get charged with opposite polarity and again getting discharged and thus continuing the cycle.Jul 23, 2015

Does capacitor work on AC or DC?

Hint:Capacitors are used in various electronic devices in modern times and these electronic devices used to work on the AC current of sometimes of the DC current. Capacitor stores charge during the time of DC circuit and changes polarity at the time of the AC circuit.

What is capacitor formula?

The basic formula governing capacitors is: charge = capacitance x voltage. or. Q = C x V. We measure capacitance in farads, which is the capacitance that stores one coulomb (defined as the amount of charge transported by one ampere in one second) of charge per one volt.Oct 9, 2018

Why capacitor is used in fan?

The capacitor is used not only to start the fan but also to make it spin. In simple words, the capacitor creates a magnetic flux (torque) which makes the fan rotate. Generally, two capacitors in parallel series are used in the ceiling fan. ... In other words, a fan will have a single-phase induction motor in it.

Why capacitor is open circuit to DC?

A fully charged capacitor acts as an open circuit. ... In case of DC, the capacitor is fully charged thus the potential difference across it becomes equal to the voltage of the source. As a result, the capacitor now acts as an open circuit and thus, there is no more flow of charge in this circuit.

Do capacitors work with DC?

Capacitor performs three tasks in dc circuits i.e. taking charge, holding charge and delivering charge at certain time. When capacitor is connected to dc voltage source, capacitor starts the process of acquiring a charge. ... When capacitor has almost full voltage across it, no more current flows though capacitor.

What is the capacitor symbol?

The symbol with one curved plate indicates that the capacitor is polarized. The curved plate usually represents the cathode of the capacitor, which should be at a lower voltage than the positive, anode pin. A plus sign should also be added to the positive pin of the polarized capacitor symbol.

Which current is blocked by capacitor?

DC current is blocked by the Capacitor! It doesn't “pass” either one. The current flows in and out of it as it gets charged and discharged. With DC, the current flows to its plates until it gets charged up, which happens VERY quickly, and then no current flows because there is an insulator between its plates.

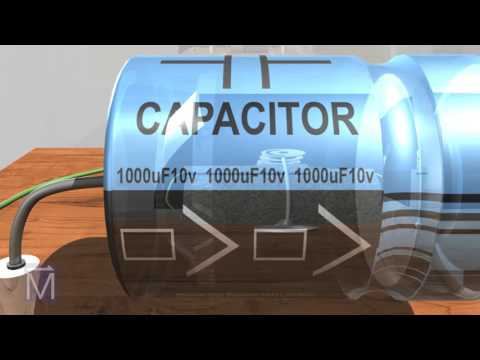

image-What is the main use of capacitor?
image-What is the main use of capacitor?

What is the impedance of a capacitor?

The impedance of an ideal capacitor is equal in magnitude to its reactance, but these two quantities are not identical. Reactance is expressed as an ordinary number with the unit ohms, whereas the impedance of a capacitor is the reactance multiplied by -j, i.e., Z = -jX.


Do capacitors convert AC to DC?

Yes, a capacitor itself does not convert an AC to DC. However, capacitors are connected across bridge rectifiers to obtain a smoother ripple-free DC signal.


What is capacitor BYJU's?

The capacitor is a device in which electrical energy can be stored. It is an arrangement of two-conductor generally carrying charges of equal magnitudes and opposite sign and separated by an insulating medium. ... Capacitor vary in shape and size, they have many important applications in electronics.


What is capacitor SI unit?

The SI unit of capacitance is the farad (symbol: F), named after the English physicist Michael Faraday. A 1 farad capacitor, when charged with 1 coulomb of electrical charge, has a potential difference of 1 volt between its plates. The reciprocal of capacitance is called elastance.


What is capacitor and how does it work?

  • A capacitor is a bit like a battery, but it has a different job to do. A battery uses chemicals to store electrical energy and release it very slowly through a circuit; sometimes (in the case of a quartz watch ) it can take several years.


How do capacitors work and what is their purpose?

  • Capacitors are used in several different ways in electronic circuits: Sometimes, capacitors are used to store charge for high-speed use. That's what a flash does. ... Capacitors can also eliminate ripples. If a line carrying DC voltage has ripples or spikes in it, a big capacitor can even out the voltage by absorbing the peaks and ... A capacitor can block DC voltage. ...


How does a capacitor work in an AC circuit?

  • In the purely capacitive circuit above, the capacitor is connected directly across the AC supply voltage. As the supply voltage increases and decreases, the capacitor charges and discharges with respect to this change.


How do I charge a capacitor?

  • To charge a capacitor, you need to wire a resistor or test light between the battery and the capacitor. To measure the voltage of the capacitor before, during, and after discharging, use a multimeter. Use a multimeter while charging a capacitor. Connect one end of the battery to the switch.
