What is the principle of water jet machining?

Water Jet cutting uses an ultra-high pressure stream of water to carry an abrasive grit. The abrasive does the cutting through a mechanical sawing action, leaving a smooth, precision cut surface. Waterjet is the most versatile process, because it is able to cut almost any type of material.

Water Jet Machining (WJM) also called water jet cutting, is a non-traditional machining process in which high-velocity jet of water is used to remove materials from the surface of the workpiece. WJM can be used to cut softer materials like plastic, rubber or wood.

What is water jet technique?

Disperse the raw pulp material in water, pressurize and inject slurry up to 245MPa (35,525psi, 2,450 bar) at a speed of Mach 2. Fiber materials are fibrillated into nanofibers by colliding two high pressure water jet streams at an oblique angle.

How is a water jet made?

Abrasive waterjet is similar to a pure waterjet, except that after the pure waterjet is created, garnet abrasive is pulled into the head via a venturi vacuum, mixed with the water, and then the resulting abrasive waterjet stream can cut hard materials like metal, ceramic, stone, glass and composite.

What is water jet machining application?

Application of Waterjet Cutting Machine. To cut floor medallions, tabletop inlay, Wall inlay, metal inlay, out door stone, Border Tiles, Artistic & Architectural designs, murals, Stone furniture, Kitchens countertops etc in ceramic and stone segment.

What are the applications of USM?

USM is most commonly used to machining of glass, ceramics, zirconia, precious stones, and hardened steels. USM allows the cutting of complex and non-uniform shape with extremely high precision. So it is used in optical and electrical application where more precise and quality cutting is required.

What are the applications and limitations of water jet machining?

Disadvantages /Limitations

A dust collection system must be provided to avoid air pollution and health hazards. This can be eliminated by using abrasive water jet machining. The abrasive powder cannot be reused because its cutting ability decrease and it may clog on orifice of the nozzle.

What materials can be water jet cut?

Waterjet machines cut all types of metals: hardened tool steel, aluminum, titanium, and a host of exotic metals that prove difficult to cut with other tools or processes. Cutting with a waterjet produces a smooth edge with no burn marks, cracking or excess burrs.

What is the key element of water jet machining for material removal?

2. What is the key element of water jet machining for material removal? Explanation: Water jet is the one, which is used to cut the work piece and to remove material. 3.

What are the material used for abrasives in abrasive water jet machining?

Different types of abrasives are used in abrasive water-jet machining like garnet, aluminum oxide, olivine, silica sand, silicon carbide, etc.

Who invented water jet machining?

But the idea of adding an abrasive to the water allowing it to cut hard material was introduced by Elmo Smith in 1935. Smiths design resulted in a nozzle capable of cutting wood, rubber and even stone. The problem was creating a reliable high-pressure pump capable of pressurising the mixture to more than 40,000 psi.Sep 4, 2019

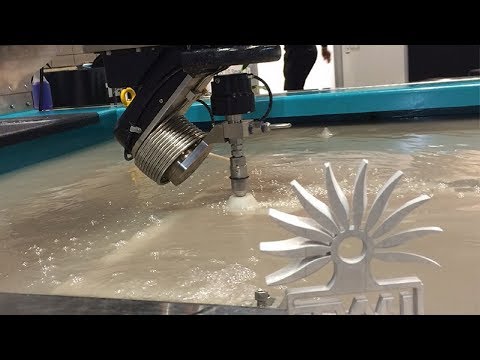

image-What is the principle of water jet machining?
image-What is the principle of water jet machining?

What are the advantages and disadvantages of water jet machining?

Cutting Time – While the waterjet cutter can cut most of the same materials, very often the cutting takes longer than a traditional cutter. More time cutting means less output. Orifice Failure – Low quality waterjet orifices have a tendency to break down and disrupt cutting, resulting in lost time and productivity.Jul 2, 2016


How much does a water jet cutter cost?

CNC waterjet machines require an expensive Ultra High Pressure Intensifier pump, so they are going to range from at least $100,000 to as much as $350,000, depending on size and options. Finally, CNC laser machines are usually the most costly.


What is the principle of USM?

Ultrasonic Machining (USM) also called as ultrasonic vibration machining is a machining process in which material is removed from the surface of a part by low amplitude and high frequency vibration of a tool against surface of material in the presence of abrasive particles.


What are the advantages and disadvantages of USM?

Advantages and Disadvantages:

No heat generated in work so there is no problem of work hardening or change in structure of work piece. Non-conductive metals or non-metals, which cannot be machined by ECM of EDM can be machined by it. It does not form chips of significant size.
Mar 28, 2017


How much does waterjet cutting cost?

  • On average waterjet cutting services will cost between $19-$37 per hour, according to Of course, total costs will vary based on factors like water, power and prices of parts. How Much Does Waterjet Cutting Cost? It's well known that operating and maintaining waterjet cutting machines can be extremely costly.


How does waterjet cutting work?

  • How waterjet cutting works. How does waterjet cutting work? Abrasive Waterjet Cutting is essentially an accelerated erosion process. Ultra-high pressure water is fired through a ruby or diamond orifice into a “mixing chamber” which creates a vacuum and draws garnet sand into the water stream.


What is a water jet cutting machine?

  • Waterjet cutting machine, also known as waterjet or water jet cutter, is an industrial tool applying waterjet technology to cut a variety of metals, non-metal materials and intricate composite materials with a jet of water.


How does a waterjet work?

  • How Waterjet Works. Waterjet technology is a cold cutting process which cuts by using supersonic water, or water and abrasive, to erode material. Because of this, waterjets are unlimited in what they can cut.


What is water jet machining and how does it work?What is water jet machining and how does it work?

Water jet machining is one of the modern machining processes which is used to machine different types of workpiece ranging from plastics to metals. As the name suggests in water jet machining, the force created by a water jet is used to remove material from the workpiece or sometimes cut the workpiece into two parts.


What is abrasive water jet machining (awjm)?What is abrasive water jet machining (awjm)?

When an abrasive material is used in the water for the machining process than it is called Abrasive Water Jet Machining (AWJM). It is based on the principle of water erosion. When a high-velocity jet of water strikes the surface, the removal of material takes place. Pure water jet is used to machine softer materials.


What is the jet speed of water jet?What is the jet speed of water jet?

The jet speed is almost 600 m/s. It does not generate any environmental hazards. For cutting hard materials, abrasive particles are used in water jet These abrasive particles erode metal from contact surface. In the water jet machining process a hydraulic pump is used to pump the water from storage tank for machining process.


What tools do you need to use a water jet cutter?What tools do you need to use a water jet cutter?

No physical tool is require. It can cut both soft and hard material. For machining soft materials, water jet machining is used and for machining hard materials, abrasive water jet machining is used. It is ideal process for laser reflective materials where laser beam machining cannot be used.
