What is the purpose of ferrite test?

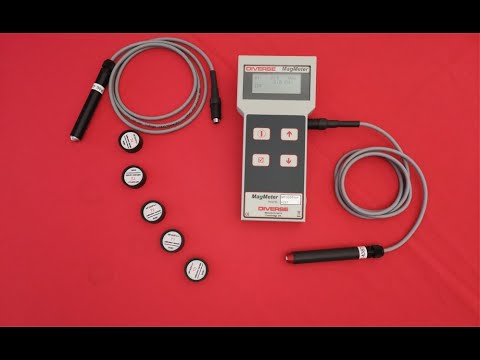

The Diverse Ferrite meter MF300Fe+ measures the Ferrite number (FN) of austenitic and duplex stainless steel weld material. There are 2 probe options: P46 with an active area of 4x6mm and P10 that is sensitive to ferrite content in a 10 mm diameter. ... The instrument is calibrated using NIST secondary weld standards.
What is ferrite value?
A Ferrite Number is a description of the ferrite content of a weld metal determined using a standardized procedure. Such procedures are laid down in this document. The Ferrite Number of a weld metal has been considered approximately equivalent to the percentage ferrite content, particularly at low FN values.
What is ferrite content?
Ferrite content is a measure of the amount of ferrite in a steel. Ferrite is one form of microstructure – the internal crystal structure – that can exist within steel. ... A ferritic microstructure in a stainless steel is usually associated with high strength and resistance to chloride stress corrosion cracking.
What is ferrite inspection?

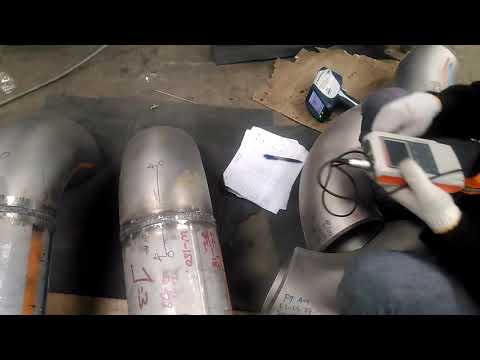

Ferrite testing is a fast, inexpensive, and accurate process that measures the percentage of ferrite in stainless steel–specifically austenitic and duplex stainless steel. ... Ferrite testing is used in a range of industries, including: Oil and gas. Pulp and paper.
How is ferrite measured in stainless steel?
The ferrite content can be measured by magnetic methods, quantitative metallography like for example planimetry, lineal analysis, or differential point counting [14] or by different methods using electron diffraction such as X-ray diffractometry (XRD) or electron backscatter diffraction (EBSD).Apr 10, 2019
What is Feritscope?
The FERITSCOPE FMP30 measures the ferrite content in austenitic and duplex steel according to the mag‑ netic induction method. ... A ferrite deficit in the weld seam area leads to strength reduction, an excess ferrite content to a reduction in toughness and ductility.
What is delta ferrite?
Delta ferrite may form during solidification of steels and welds. In welds, delta ferrite forms during the solidification of: - low-carbon steel welds; - high-alloy ferritic chromium welds; ... 2 In fully austenitic welds, austenite can also change into ferrite as a result of the gamma alpha transformation.
What is ferrite number testing?
Ferrite testing is a technique used to measure the delta ferrite content in austenitic stainless steel and duplex stainless steel. ... Ferrite testing commonly employs magnetic induction as a means to measure the ferrite content of a material, although there are other methods that are used.Jun 28, 2019
How is ferrite number calculated?
The best-fit equation found in this study was ferrite number (FN) = 1.1 × ferrite fraction (%). To conclude, the ferrite fraction technique suggested in the present paper was accurate and repeatable, which made it possible to determine a ferrite fraction–ferrite number formula for SDSS single-pass welds.Dec 5, 2018
Why is ferrite number important?
The phase balance is important because it determines the overall properties of the alloy: the ferrite phase imparts strength, chloride stress corrosion cracking resistance, ferromagnetic properties and solidification cracking resistance and the austenite phase imparts toughness, corrosion resistance and hydrogen ...Mar 24, 2019
Related questions
Related
What is ferrite in stainless steel?
Ferrite is a metallurgical phase of iron within which metallic alloying elements are in a solid solution, but carbon is effectively insoluble. Ferrite is practically absent in quenched martensitic and austenitic stainless steels, but its presence is what characterizes stainless steels.Apr 10, 2020
Related
How ferrite is formed?
Alpha ferrite forms by the slow cooling of austenite, with the associated rejection of carbon by diffusion. ... Delta ferrite is the high temperature form of iron, formed on cooling low carbon concentrations in iron-carbon alloys from the liquid state before transforming to austenite.
Related
Does ferrite corrode?
Ferrite compounds are extremely low cost, being made of mostly iron oxide, and have excellent corrosion resistance.
Related
How to measure the ferrite content of materials?How to measure the ferrite content of materials?
Robust handheld device for accurate ferrite content measurement, directly on site Units can be switched between WRC-FN (ferrite number), Fe % (ferrite percent) and α-martensite % (forming martensite) After applying the probe, the measured value is automatically displayed and saved in the instrument
Related
What happens if the ferrite content is too low on fmp30?What happens if the ferrite content is too low on fmp30?
If the ferrite content is too low, for example in the area of weld seams, this can lead to a loss in strength. On the other hand, too-high ferrite content reduces corrosion resistance, toughness and ductility. But if you check the ferrite content with the FERITSCOPE® FMP30, you know for sure.
Related
How much Fe is in a feritscope?How much Fe is in a feritscope?
The test uses a portable feritscope machine from Fischer. This handy equipment provides rapid and accurate data by using highly mobile digital technology. the range from 0.1 to 80 % Fe or 0.1 to 110 FN) in Austenitic & Duplex Steel using Magnetic Induction Working Principle.
Related
What is Fischer feritscope?What is Fischer feritscope?
Product DescriptionFISCHER FERITSCOPE FMP30 is used to measure Delta-Ferrite (inthe range from 0.1 to 80 % Fe or 0.1 to 110 FN) in Austenitic & Duplex Steel using Magnetic Induction Working Principle. read more... read more... read more... read more... Brochure
Related
Why are ferrite cores used?
- A ferrite core is a passive electric component used to suppress high frequency noise in electronic circuits. They essentially act as a high impedance, or "resistor" to high frequency EMI/RFI electronic noise.
Related
What is ferritic stainless steel used for?
- Ferritic steels are high chromium, magnetic stainless steels that have a low carbon content. Known for their good ductility, resistance to corrosion and stress corrosion cracking, ferritic steels are commonly used in automotive applications, kitchenware, and industrial equipment.
Related
What is a ferrite number?
- Ferrite number is the amount of retained delta ferrite into the weldment of austenitic stainless steels, which may support mechanical and corrosion properties (if present within the acceptable range). Ferrite number approximates 5-20.
Related
What is the purpose of ferrite test?What is the purpose of ferrite test?
Ferrite testing is a technique used to measure the delta ferrite content in austenitic stainless steel and duplex stainless steel. The delta ferrite content is measured to better understand an austenitic or duplex stainless steel's susceptibility to corrosion, susceptibility to solidification cracking and other types of material failure.
Related
Why are ferrite cores used?Why are ferrite cores used?
A ferrite core is a passive electric component used to suppress high frequency noise in electronic circuits. They essentially act as a high impedance, or "resistor" to high frequency EMI/RFI electronic noise.
Related
What is ferritic stainless steel used for?What is ferritic stainless steel used for?
Ferritic steels are high chromium, magnetic stainless steels that have a low carbon content. Known for their good ductility, resistance to corrosion and stress corrosion cracking, ferritic steels are commonly used in automotive applications, kitchenware, and industrial equipment.
Related
What is a ferrite number?What is a ferrite number?
Ferrite number is the amount of retained delta ferrite into the weldment of austenitic stainless steels, which may support mechanical and corrosion properties (if present within the acceptable range). Ferrite number approximates 5-20.
