What is time constant in lock-in amplifier?

What is the purpose of lock-in amplifier?

A lock-in amplifier performs a multiplication of its input with a reference signal, also sometimes called down-mixing or heterodyne/homodyne detection, and then applies an adjustable low-pass filter to the result.

What is sensitivity in lock-in amplifier?

The sensitivity is the signal level required to drive the amplifier to full scale. If your sensitivity is set too high (too low full scale voltage or current) then you get overloading. If you set it too low (too high full scale voltage or current) then the noise performance may be sub-optimal.Aug 11, 2015

What is frequency lock-in?

Lock-In amplifier Mathematics

Lock-in measurements require the input signal to oscillate at the reference frequency. Thus, typically an experiment is excited (or modulated) at a fixed frequency (from an oscillator or function generator) and the lock-in amplifier detects the response from the experiment.

What is meant by 1/f noise?

1/f noise is low frequency noise for which the noise power is inversely proportional to the frequency. 1/f noise has been observed not only in electronics, but also in music, biology, and even economics. ... The crossover point between the 1/f noise and the broadband noise is called the 1/f corner.

What is the purpose for dual phase lock-in amplifier?

This analogue dual phase lock-in amplifier uses advanced technology to create a high performance instrument that is both versatile and easy to use. Lock-in amplifiers are used to measure the amplitude and phase of signals buried in noise by using the process of synchronous detection to recover the signals.

What lock means?

phrasal verb. If you lock someone in, you put them in a room and lock the door so that they cannot get out.

Where is oscilloscope used?

Oscilloscopes are often used when designing, manufacturing or repairing electronic equipment. Engineers use an oscilloscope to measure electrical phenomena and solve measurement challenges quickly and accurately to verify their designs or confirm that a sensor is working properly.May 11, 2021

What is the output of a lock-in amplifier?

The lock-in amplifies the signal and then multiplies it by the lock-in reference using a phase-sensitive detector or multiplier. The output of the PSD is simply the product of two sine waves. The PSD output is two AC signals, one at the difference frequency (ωr − ωL) and the other at the sum frequency (ωr + ωL).

What is phase sensitive amplification?

Phase-sensitive optical parametric amplification of squeezed states helps to overcome detection loss and noise and thus increase the robustness of sub-shot-noise sensing. ... Phase-sensitive amplification is obtained by tightly focusing the seed into the crystal, rather than seeding with close-to-plane waves.Feb 23, 2021

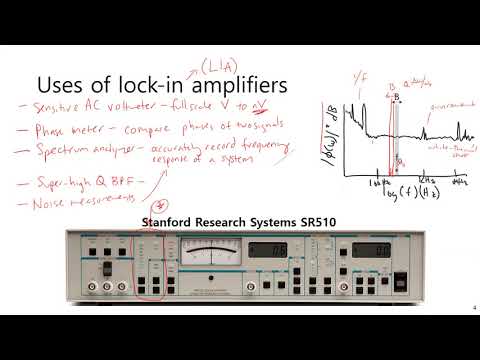

image-What is time constant in lock-in amplifier?
image-What is time constant in lock-in amplifier?

What is a phase sensitive detector?

An electronic device capable of measuring the difference in phase between a periodic signal and a reference signal in the presence of noise. The signal plus noise is multiplied by a reference waveform whose shape and frequency are similar to those of the signal.


What is lock detector?

The receiver must therefore ensure that the tracking loops are correctly following the incoming signal, and that they have not diverged away from the solution. This is the purpose of the lock detectors, which produce quality factors to assess how well the signal is being tracked.Sep 18, 2014


What is FLL clock?

The programmable frequency-locked loop (FLL) function uses the MSP430FR2100 microcontroller (MCU) to offer a simple way to generate multiple frequencies from 1 MHz to 16 MHz with or without an external crystal oscillator. ... A fixed 32.768- kHz frequency is also output for use with real-time applications.


What is FLL and PLL?

Abstract: A well-designed frequency lock loop (FLL) will outperform a well-designed phase lock loop (PLL) tracking threshold under dynamic stress and RF interference (RFI) conditions. However, the PLL will significantly outperform the FLL measurement accuracy.


What is a lock-in amplifier?

  • The lock-in amplifier is a device created to surmount this problem, by modulating the input signal by a reference signal ω. R (created by a light chopper and laser, in our case), and upon signal detection, measuring only the voltage input modulated by ω. R. II.


What is the time constant for low pass filter bandwidth?

  • Lock-in amplifiers have traditionally set the low pass filter bandwidth by setting the time constant. The time constant is simply 1/2pf where f is the -3 dB frequency of the filter. The low pass filters are simple 6 dB/oct roll off, RC type filters.


What is the difference between a lock-in and a voltmeter?

  • In practice, the lock-in can measure voltage amplitudes as small as a few nano volts, while ignoring signals even thousands of times larger. In contrast, an AC voltmeter would measure the sum of all of the voltages at its input. Let's consider an example. Suppose the signal is a 10 nV sine wave at 10 kHz.


How does a lock-in measurement work?

  • Lock-in measurements require a frequency reference. Typically an experiment is excited at a fixed frequency (from an oscillator or function generator) and the lock-in detects the response from the experiment at the reference frequency.
